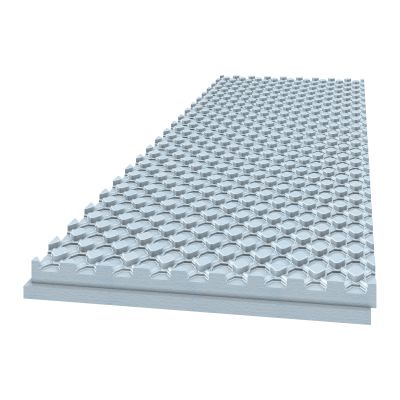

The SR.HydroPex™ panels manufactured by Styro Rail Inc. are composed of type 2 [200 series] expanded polystyrene [EPS] rigid insulation or type 3 [300 to 600 series]. A honeycomb-layout creates a spacing with intervals of 76 mm [3''] for the placement of the pipes. The system is compatible with all pipes dimensions: 13 mm [1/2''], 16 mm [5/8''], 20 mm [3/4''] and 25 mm [1''].

• Polyvalent multidirectional system
• Various compressive values for all uses [between 110 kPa and 414 kPa | 16 PSI and 60 PSI]

• Compatible with all pipe dimensions
• Honeycomb layout holds the pipes securely in position, without ties – Allows a “standing” installation
• Eliminates wire mesh installation when it is not required for slab reinforcement
• Thermal barrier limiting heat losses through soil
• Meets CAN/ULC-S701.1 standard

Install SR.Hydropex™ panels as a insulating material that offers a support to fix water or glycol radiant heat floor pipes. Install 200 series prior to the pouring of finished concrete of basement slabs and residential garages; 300 to 600 series for commercial, industrial and agricultural concrete slabs.
