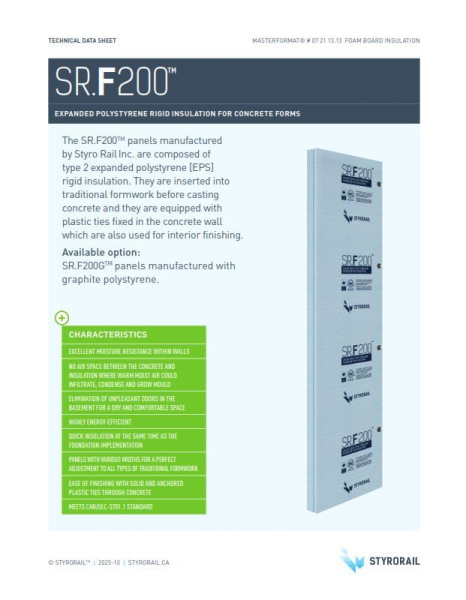

Concrete forms insulating panel

The SR.F200™ panels manufactured by Styro Rail Inc. are composed of type 2 expanded polystyrene [EPS] rigid insulation. They are inserted into traditional formwork before casting concrete and they are equipped with plastic ties fixed in the concrete wall which are also used for interior finishing.

Characteristics

Excellent moisture resistance within walls

No air space between the concrete and insulation where warm moist air could infiltrate, condense and grow mould

Elimination of unpleasant odors in the basement for a dry and comfortable space

Highly energy-efficient

Quick insulation at the same time as the foundation implementation

Panels with various widths for a perfect adjustment to all types of traditional formwork

Ease of finishing with solid and anchored plastic ties through concrete

Meets CAN/ULC-S701.1 standard

Recommended use

Install SR.F200™ panel into traditional formwork before casting concrete, on the interior or exterior side of the walls, to obtain a continuous basement or above grade concrete wall insulation.
Install SR.F200G™ panels when a higher insulation value is needed for a specified thickness.
