Foundation insulating panel

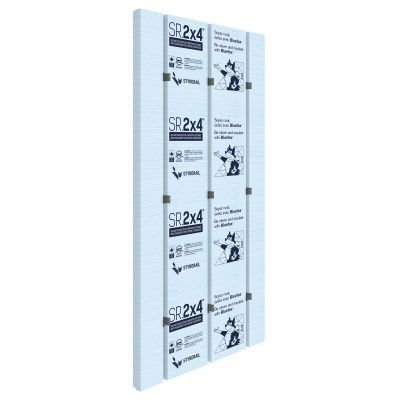

The SR.2X4™ panels manufactured by Styro Rail Inc. offer an alternative to traditional insulation of basements walls. They are produced in type 1 expanded polystyrene [EPS] rigid insulation. Each panel is comprised     with channels at 406 mm [16”] o.c. or 610 mm [24”] o.c. in order to facilitate the insertion of wood stud framing. Metal brackets are provided to firmly secure the wood stud framing to the concrete wall.

Characteristics

Excellent moisture resistance

Rapid installation of the 2”x4” stud

Easy electrical wiring and boxe installation - No cutting of the insulation is necessary

Solid fixation to concrete wall with metal brackets

Meets CAN/ULC-S701.1 standard

Recommended use

Install SR.2X4™ panels on the interior surface of foundation walls in order to obtain a continuous thermal envelope. Suitable for renovation projects and new construction.
